SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory

SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory
SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory

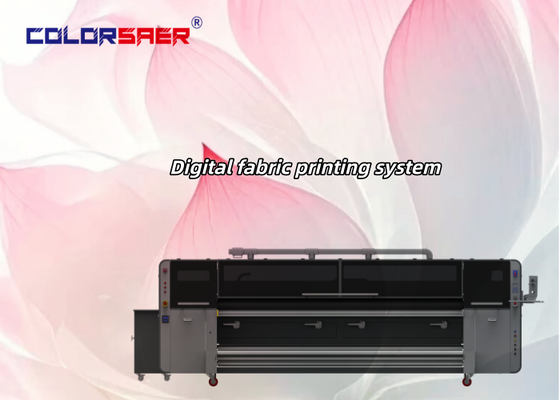

Grote Afbeelding :  SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory

Productdetails:
Plaats van herkomst: Sjanghai, China
Merknaam: SAER
Certificering: CE Certification
Modelnummer: CSR3200
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 Instellen
Prijs: Onderhandelbaar
Verpakking Details: Houten kist zonder begassing
Levertijd: 15 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 50 sets per maand

SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory

beschrijving
Gebruik: Binnen- en buitenreclame -veld Compatibel besturingssysteem: Windows 7 & Windows 10
Sofware: ONYX Werkkracht van de machine: 7 kW
Automatische rangschikking: Automatisch Geschikte stoftype: Polyester & katoen
Media -verwerking: Rol To Roll + Auto Feeding + Auto Roll Up Inkttype: Sublimatie -inkt, pigment inkt
Voeding: AC380, 50/60 Hz Kleur en pagina: Veelkleurig

Product name: SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory

Printer working speed:





Printing resolution and speed

Resolution(dpi) speed
720*1200dpi(4 pass) 78m2/h
720*2400dpi(8 pass) 52m2/h
360*1200dpi(2 pass) 136m2/h

Machine Specifications:

Product Parameter
Model type CSR3200
Print head 4 pieces i3200A1
Ink Sublimation ink, pigment ink
Number of nozzles (400 nozzles*8lines)*4head
Color Dual CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 3300mm
Max printing width 3200mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB2.0
RAM 128M
Printer Power AC380V ,50/60HZ
Power Heater 3KW
Printer 4KW
Temperature 30-32℃
Humidity 40-60%(Non-condensing)

Machine Main Features :

Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .

Print head: Four pcs i3200A1 Print head, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

X axis and Yaxis:
X axis and Y axis are using AC servo motors.



Advantages:

  1. Taking up and feeding fabric are smoothly
  2. Taking up and feeding roller are inflatable roller.
  3. Unique filtering lampblack system, make the picture very clean.
  4. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

FAQ:



1) How can I place order?
A: Contact us about your order details,we will prepare the PI .

2) How can I pay you?
A: Uaually we accept T/T, Western Union

3) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.

4) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.

5) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.



Professinal Service:

SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory 0

SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory 1

Logistics Service:
SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory 2

Application industry:

  1. Clothing industry: sample print or character pattern of color printing.
  2. Personality print: such as shops, cell phone decoration shop, personality gift shop.
  3. Studio: digital image production.
  4. Advertising industry: indoor and outdoor advertising.
  5. Products proofing: all kinds of traditional printing sample production.

SAER Environmentally Friendly Digital Fabric Printing System with I3200 Print Head for Textile Factory 3
