Productdetails:
|
| Geschikte stoftype: | Polyester & katoen | Media -verwerking: | Rol To Roll + Auto Feeding + Auto Roll Up |
|---|---|---|---|
| Inkttype: | Sublimatie -inkt, pigment inkt | Kleur en pagina: | Veelkleurig |
| Gebruik: | Binnen- en buitenreclame -veld | Compatibel besturingssysteem: | Windows 7 & Windows 10 |
| Sofware: | ONYX | Verwarming vermogen: | 6 kW |
| Automatische rangschikking: | automatisch | Spanning: | AC100-120V/AC220-240V |

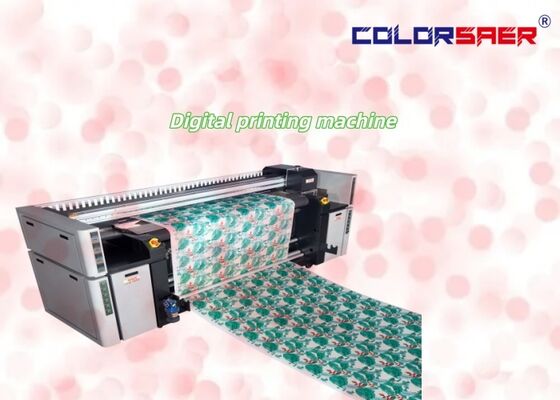

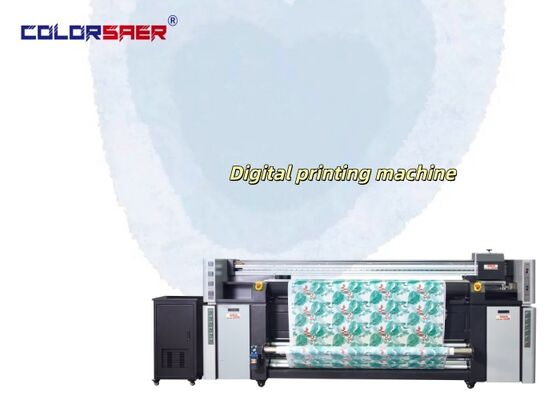

Product name:Automatic Digital 2m&3.2m Size Roll to Roll Digital Textile Printing System With Sublimation & Pigment ink
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Main Features :
Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Print head: Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Advantages:
FAQ:
1) How can I place order?
A: Contact us about your order details,we will prepare the PI .
2) How can I pay you?
A: Uaually we accept T/T, Western Union
3) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.
4) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.
5) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.
Professinal Service:
Logistics Service:
Application industry:
