Productdetails:
|
| Sofware: | ONYX | Kachelverwarming: | 6 kW |
|---|---|---|---|
| Automatisch cijfer: | Automatisch | Spanning: | AC100-120V/AC220-240V |
| Geschikte stoftype: | Gebreide of geweven katoen, linnen, zijde, wol, chemische vezels, nylon.oxford enz | Media -verwerking: | Rol To Roll + Auto Feeding + Auto Roll Up |
| Inkttype: | Sublimatie -inkt, pigment inkt | Kleur en pagina: | VEELKLEURIG |
| Gebruik: | Binnen- en buitenreclame -veld | Compatibel besturingssysteem: | Windows 7 & Windows 10 |
| Markeren: | 6.56 ft textile printing system,Epson head printer for cotton,polyester printing system with warranty |
||

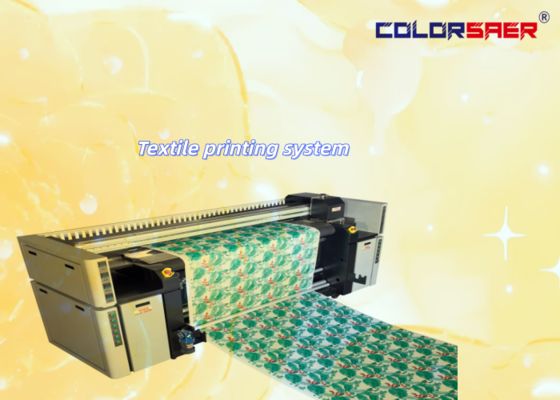

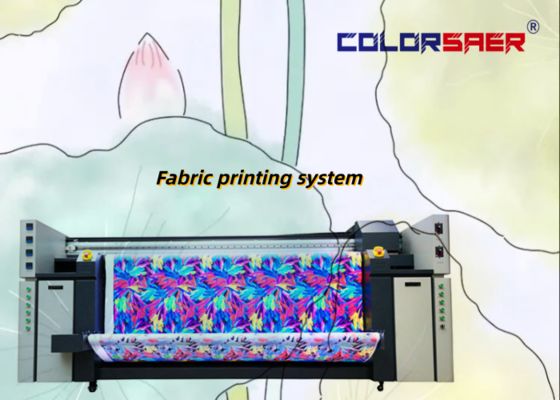

Product name: Factory supply 6.56 ft Textile printing system for cotton & polyester 4 pcs Epson head printer
Machine working speed :
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Main Features :
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Advantages:
Application industry:
